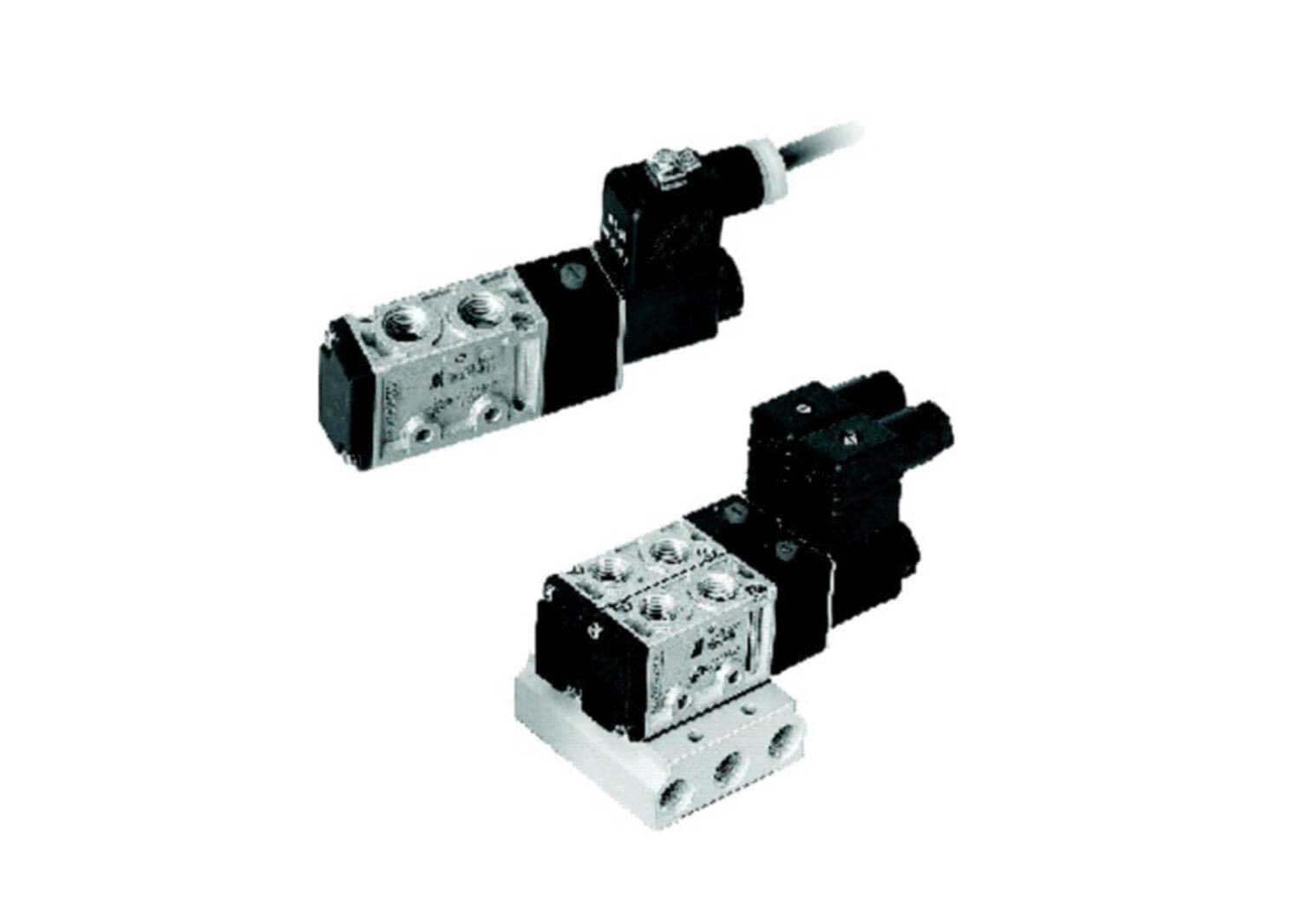

Optional: Solenoid Valve MVSE-260
| MVSE-260-4E1 | Model |
|
Port Size Code |
8A |
|
Port Size |
PT 1/4 |
|
No. of Port |
5 |
|
No. of Position |
2 |
|
Medium |
Air |
|
Operating Pressure Range |
2~12kgf/cm2 |
|
Proof Pressure |
15kgf/cm2 |
|
Effective Orifice |
18mm2 |
|
Ambient Temperature |
-5~+50℃(no condensate) |
|
Response Time |
40ms |
|
Voltage |
110Vac, 220Vac(50/60)Hz, 24Vdc |
|
Power Consumption |
Vac = 6/4.9VA, Vdc = 2.5W |
|
Available Voltage Range |
±10% |
|
Insulation Class |
F class |
|
Weight |
255g |
