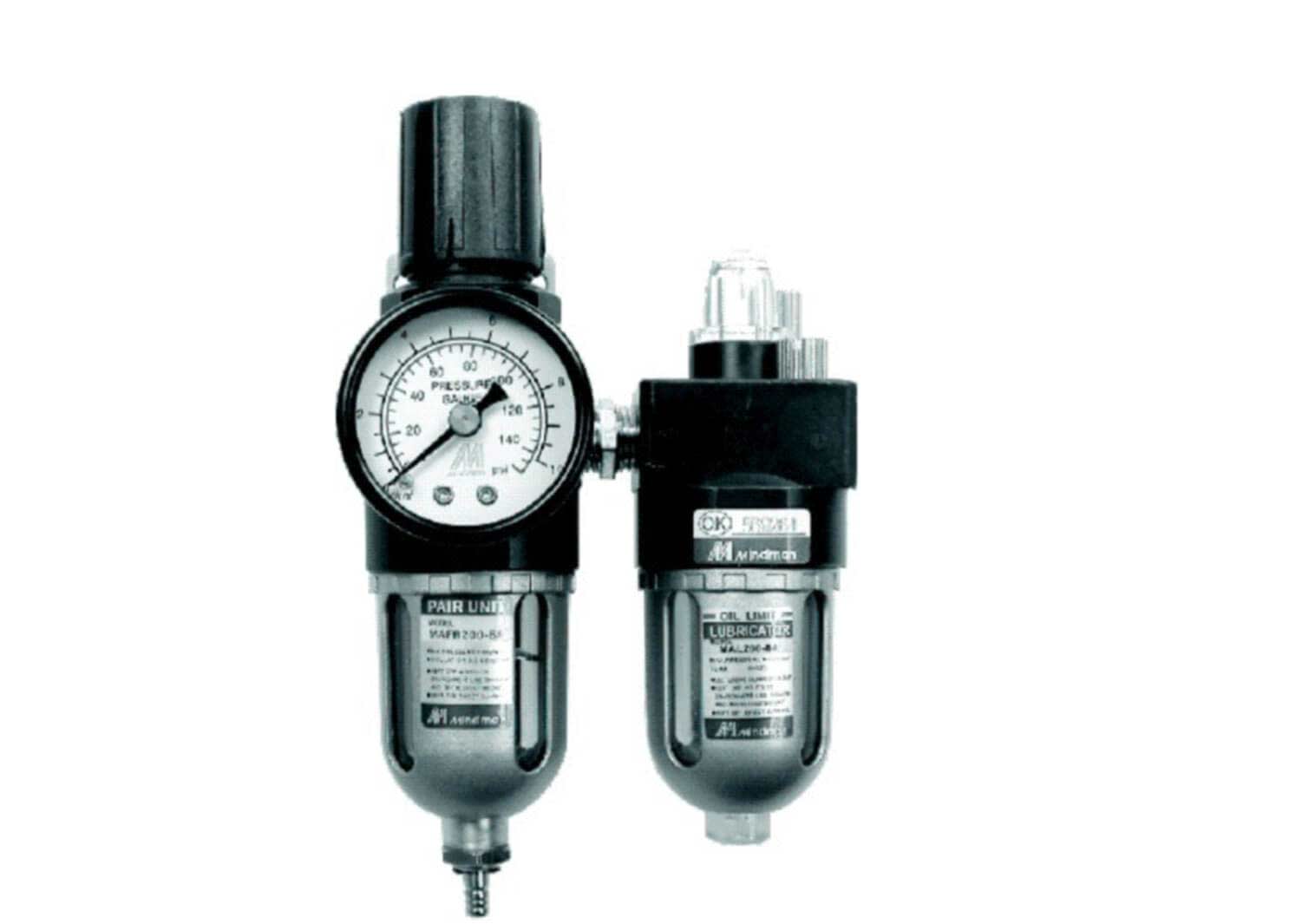

Optional: Air Units MACP200
| MACP-200 | Model |
|
Equipment Model |
MAFR 200, MAL 200 |
|
Port Size Code |
8A |
|
Port Size |
PT 1/4 |
|
Medium |
Air |
|
Operating Pressure Range |
0~9.9kgf/cm2(0 ~ 0.99MPa) |
|
Proof Pressure |
15kgf/cm2(1.5MPa) |
|
Pressure Setting Range |
0.5~8.5kgf/cm2(0.05 ~ 0.85MPa) |
|
Ambient Temperature |
5~60℃ |
|
Filter Grade |
40μm |
|
Oil Volume |
25c.c. |
|
Flow Rate |
50l/min |
|
Recommended Lubrication |
Turbine oil ISO-VG32 |
|
Accessories |
Gauge, L-type bracket |
|
Weight |
650g |
