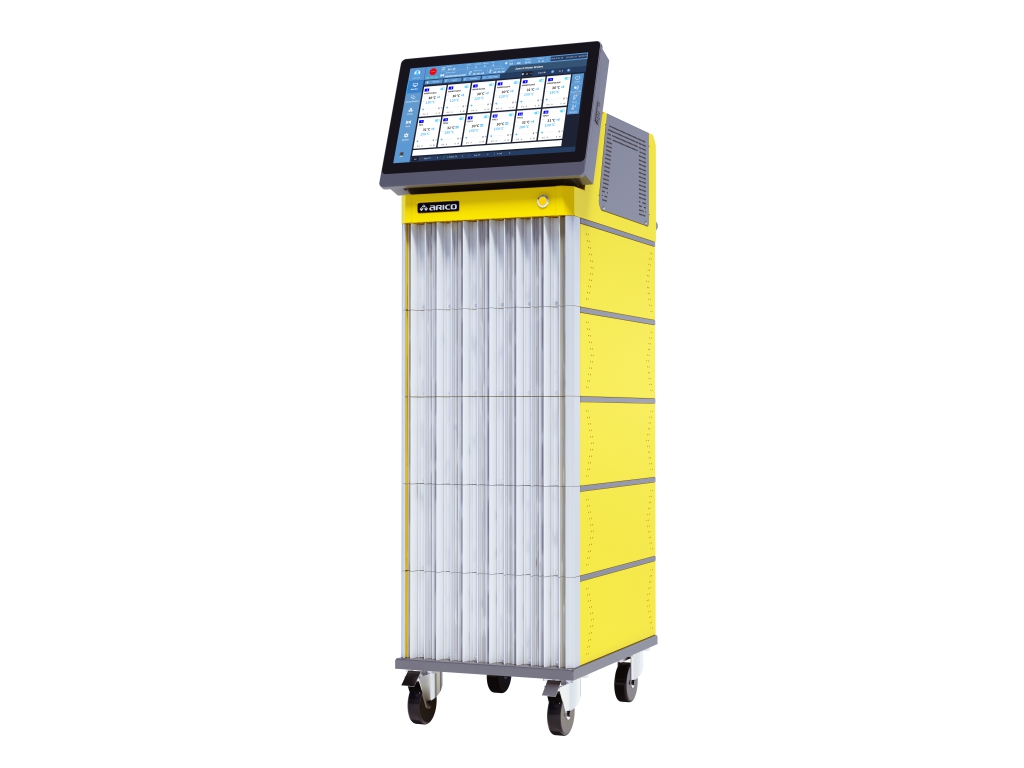

TC5600 Multi-Cavity Hot Runner Temperature Controller
Overview
- Multi-cavity HRTC controls dozens of temperature zones at once, saving space and equipment. It's ideal for large, high-precision production, boosting yield, efficiency, and product consistency.

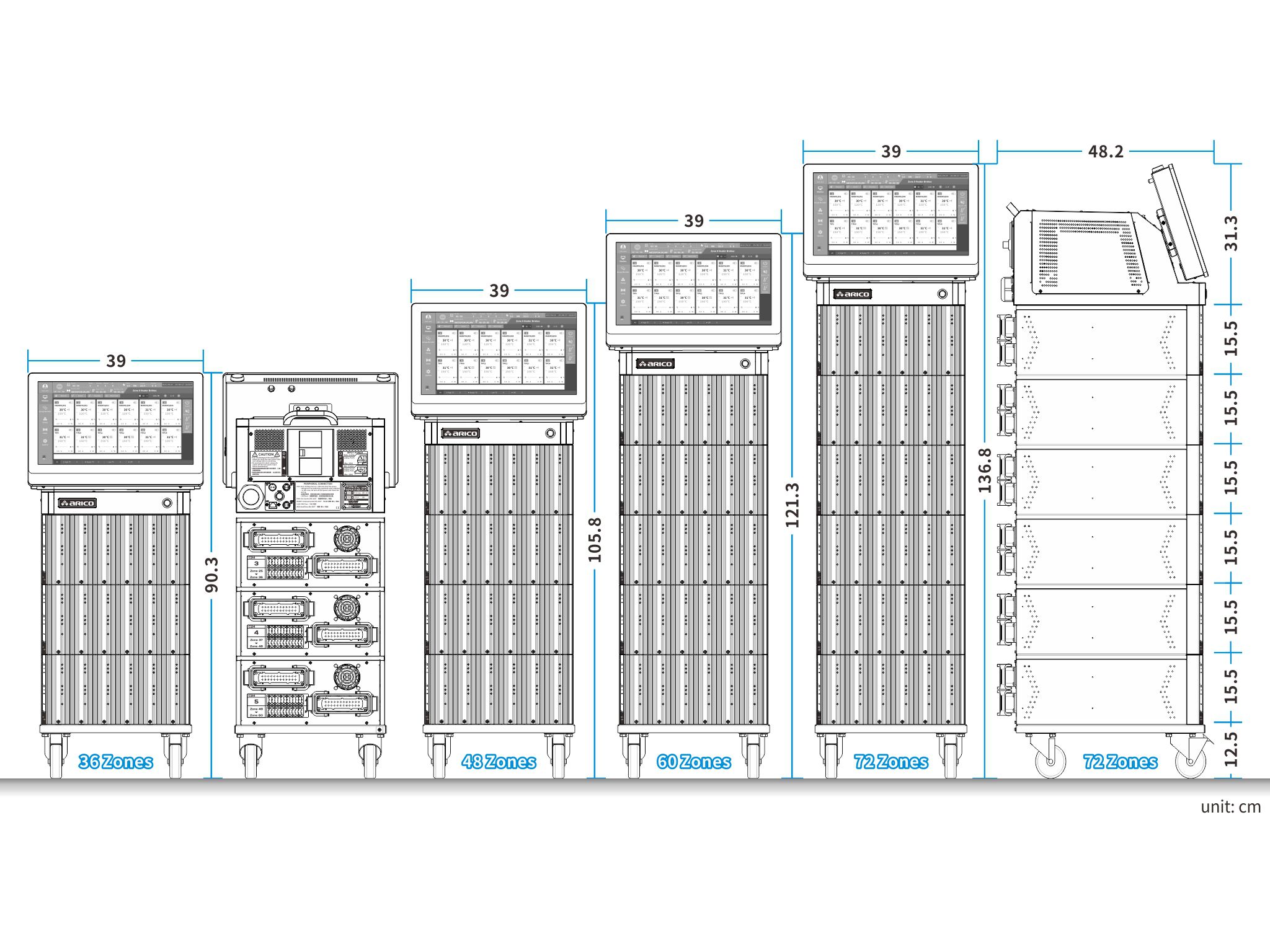

- TC5600 uses a stackable, modular design. Faulty zones and issues can be quickly identified, and modules easily replaced to resume production.
Leakage Detection: Predicts potential mold leakage and provides early warnings.
- Monitors abnormal increases in the power consumption of all heaters in the mold over time and provides early warnings of leaks, significantly reducing repair costs and downtime.
Mold Recognition: Quickly retrieves mold parameters to speed up setup.
- When changing molds, the system can automatically identify the mold and retrieve the corresponding parameters from the system's mold files, allowing the operator to select and load them.
Aging Function: Monitors heater wear and aging condition.
- Calculates the heater's aging degree based on its current consumption and displays it as a percentage.
Mold Viewer: Real-time display of mold and heater configurations to boost anomaly detection efficiency.
- Intuitive visualization of mold structure and temperature distribution enables fast, precise adjustments for efficient troubleshooting.
| TC5600 | Module |
|
Number of Zones per Module |
15A(2 zones)/30A(1 zone) |
|
Max. Current per Zone |
15A/30A |
|
Input Power |
230Vac±10%/24Vdc±5%, 50/60Hz |
|
Input Thermocouple Type |
J/K type |
|
Output Power |
3450W, 230Vac/15A(per zone); 6900W, 230Vac/30A(per zone) |
|
Output Mode |
Zero cross/Phase angle |
|
Control Accuracy |
±0.25% FS |
|
Measurement Accuracy |
±0.25% FS |
|
Temperature Control Range |
0~600°C/32~999°F |
|
Storage Temperature |
-20~70°C/-4~158°F |
|
Operating Temperature |
-10~50°C/14~122°F |
|
Operating Humidity |
0~80% RH(no condensate) |
|
ID Setup |
Automatic identification(need to work with BUS board) |
|
Indicator Lights |
Output, alarm, fuse open-circuit, communication |
|
Wireless Wi-Fi |
Wi-Fi 6(802.11ax) |
|
Communication Mode |
RS-485(standard MODBUS, isolated) |
|
Communication Speed |
38400/57600 |
|
Temperature Alarm Mode |
Upper limit/Lower limit/Standby upper limit/Standby lower limit/Absolute value alarm |
|
Abnormal Alarm |
Thermocouple: Short/Break/Reverse; Heater: Short/Break/Overload; TRIAC: Short; Fuse open-circuit |
|
Fuse |
Ultra-high speed ceramic type, 250Vac/20A, 30mm |
|
Detection Functions |
Current/Fuse open-circuit detections |
| Specs/Model | TC5500 |
TC5600 |
TC5100 |
TC5200 |
|
Max. Temperature Zones per Link |
36 |
240 |
36 |
240 |
|
Number of Zones per Module |
15A(2 zones)/30A(1 zone) |
|||
|
Max. Current per Zone |
15A/30A |
|||
|
Input Power |
230Vac±10%/24Vdc±5%, 50/60Hz |
|||
|
Input Thermocouple Type |
J/K type |
|||
|
Output Power |
3450W, 230Vac/15A(per zone); 6900W, 230Vac/30A(per zone) |
|||
|
Output Mode |
Zero cross/Phase angle |
|||
|
Control Accuracy |
±0.25% FS |
|||
|
Measurement Accuracy |
±0.25% FS |
|||
|
Temperature Control Range |
0~600°C/32~999°F |
|||
|
Storage Temperature |
-20~70°C/-4~158°F |
|||
|
Operating Temperature |
-10~50°C/14~122°F |
|||
|
Operating Humidity |
0~80% RH(no condensate) |
|||
|
ID Setup |
Automatic identification(need to work with BUS board) |
|||
|
Indicator Lights |
Output, alarm, fuse open-circuit, communication |
|||
|
Wireless Wi-Fi |
Wi-Fi 6(802.11ax) |
× |
||
|
Communication Mode |
RS-485(standard MODBUS, isolated) |
|||
|
Communication Speed |
38400/57600 |
|||
|
Temperature Alarm Mode |
Upper limit/Lower limit/Standby upper limit/Standby lower limit/Absolute value alarm |
|||
|
Abnormal Alarm |
Thermocouple: Short/Break/Reverse; Heater: Short/Break/Overload; TRIAC: Short; Fuse open-circuit |
|||
|
Fuse |
Ultra-high speed ceramic type, 250Vac/20A, 30mm |
|||
|
Detection Functions |
Current/Fuse open-circuit detections |
Current/Voltage/Fuse open-circuit/Heat sink temperature detections |
||
