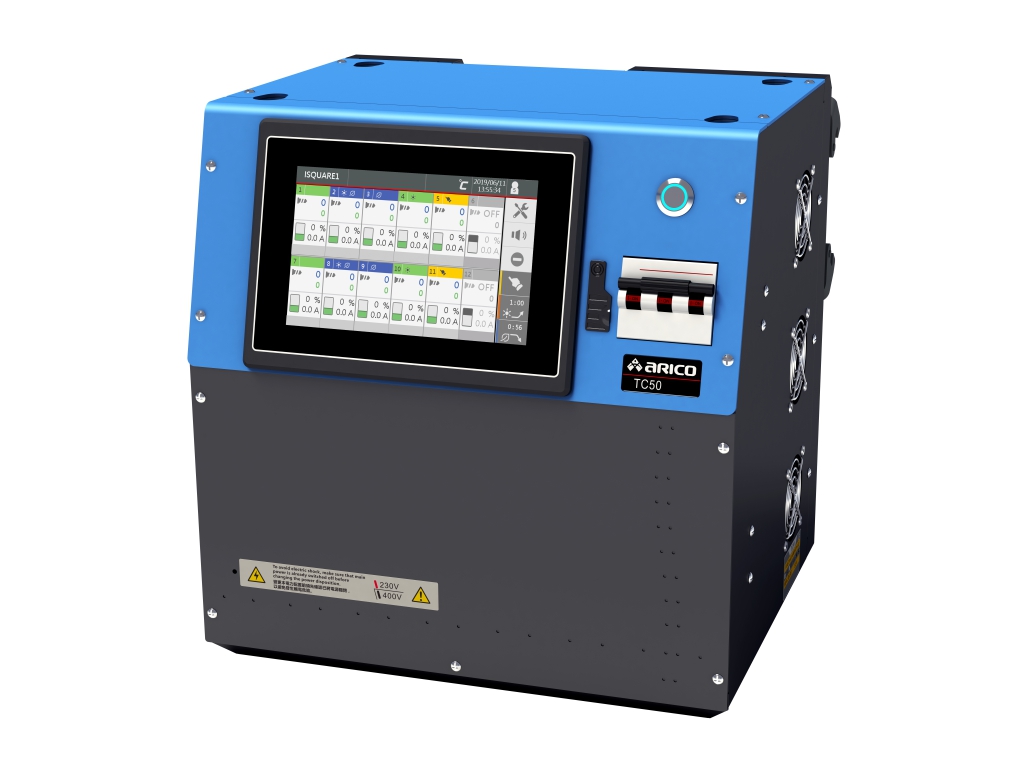

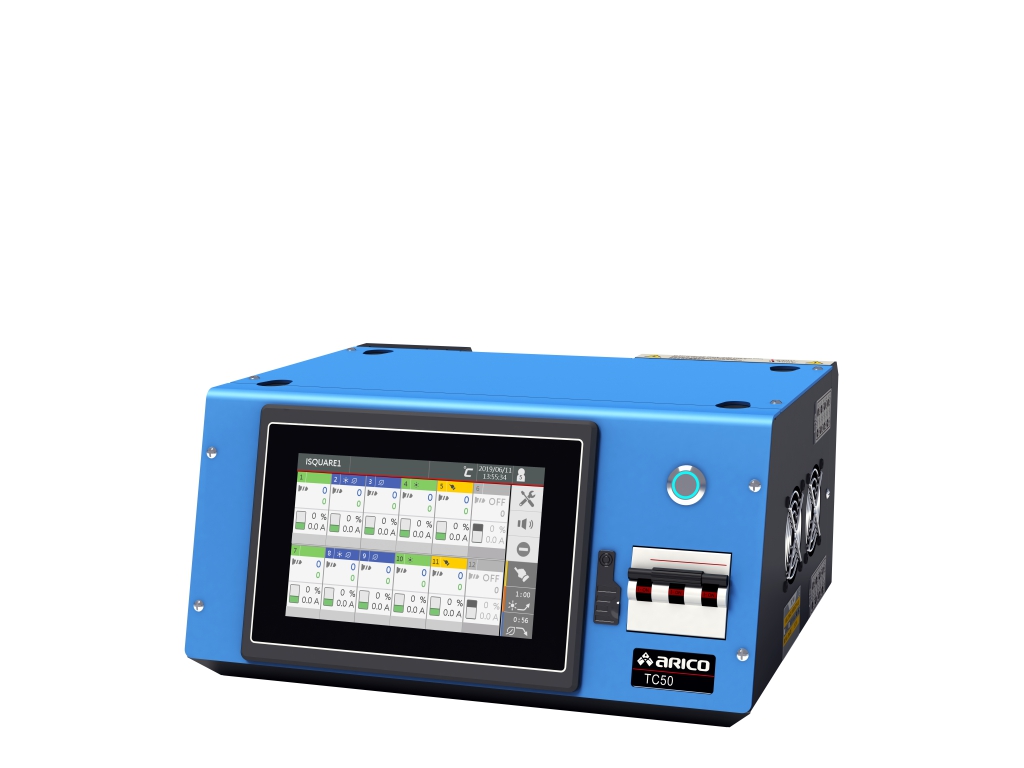

TC50 Hot Runner Temperature Controllers
Overview
- It can precisely control the temperature in the hot runner system, improve production efficiency, reduce production costs, and ensure stability and quality during the injection molding process.
- The 7" LCD display with touch panel can display real-time temperature and other control parameters, such as mold leakage detecting, synchronous heat up and cool down, mold memory, group setup function, power balance detection and display, self diagnosis log.
- It also supports injection machine connect for I/O function and optional VNC function, achieving intelligent one-stop production control.
| TC50 | Module |
|
Number of Zones per Module |
2 zones |
|
Max. Current per Zone |
15A |
|
Input Power |
230Vac±10%/24Vdc±5%, 50/60Hz |
|
Input Thermocouple Type |
J/K type |
|
Output Power |
3450W, 230Vac/15A(per zone) |
|
Output Mode |
Zero cross/Phase angle |
|
Control Accuracy |
±0.25% FS |
|
Measurement Accuracy |
±0.25% FS |
|
Temperature Control Range |
0~600°C/32~999°F |
|
Storage Temperature |
-20~70°C/-4~158°F |
|
Operating Temperature |
-10~50°C/14~122°F |
|
Operating Humidity |
0~80% RH(no condensate) |
|
Communication Mode |
RS-485(standard MODBUS, isolated)/UART |
|
Communication Speed |
38400/57600 |
|
Temperature Alarm Mode |
Upper limit/Lower limit/Standby upper limit/Standby lower limit/Absolute value alarm |
|
Abnormal Alarm |
Thermocouple: Short/Break/Reverse; Heater: Short/Break/Overload; TRIAC: Short; Fuse open-circuit |
|
Fuse |
Quick response ceramic 500Vac/20A, 30mm |
|
Detection Functions |
Temperature detection/Current detection/Overvoltage protection(≧280Vac start) |
